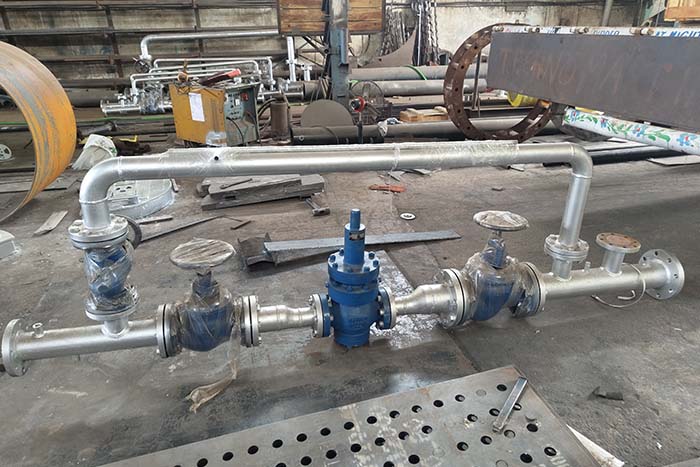

Pressure Reducing Station
The Pressure Reducing Station is a specialized product designed to regulate and reduce the pressure of fluid or gas in pipelines to a predetermined level. This product is used to maintain a constant downstream pressure by adjusting the flow of the fluid or gas through the valve, to ensure that the pressure levels are kept within safe and efficient operating ranges for various applications.
Key Features :
- Pressure Regulation : Maintains a constant downstream pressure despite fluctuations in upstream pressure.
- Safety : Protects pipelines, equipment, and systems from damage caused by excessive pressure.
- Flow Control : Ensures optimal flow rates and system efficiency by controlling pressure levels.
How It Works :
- Inlet : High-pressure fluid enters the station from the supply line.
- Pressure Reduction : The fluid passes through a pressure-reducing valve or control system that lowers the pressure to the desired level.
- Regulation : Pressure is continuously monitored and adjusted to maintain consistent downstream pressure.
- Outlet : The reduced-pressure fluid exits the station and flows into the downstream system or process.
Components :
- Pressure Reducing Valve : The main component that adjusts and controls the pressure of the fluid.
- Strainer : Removes particulates or debris from the fluid to prevent damage to the valve and system.
- Moisture Separator : Removes water from steam to ensure dry steam for system.
- Pressure Gauges : Measure and display the pressure at various points in the station.
- Bypass and Shutoff Valves : Allow for maintenance and isolation of the station from the pipeline.
Applications :
- Industrial Processes : Regulates pressure for various industrial processes, such as in manufacturing and chemical production.
